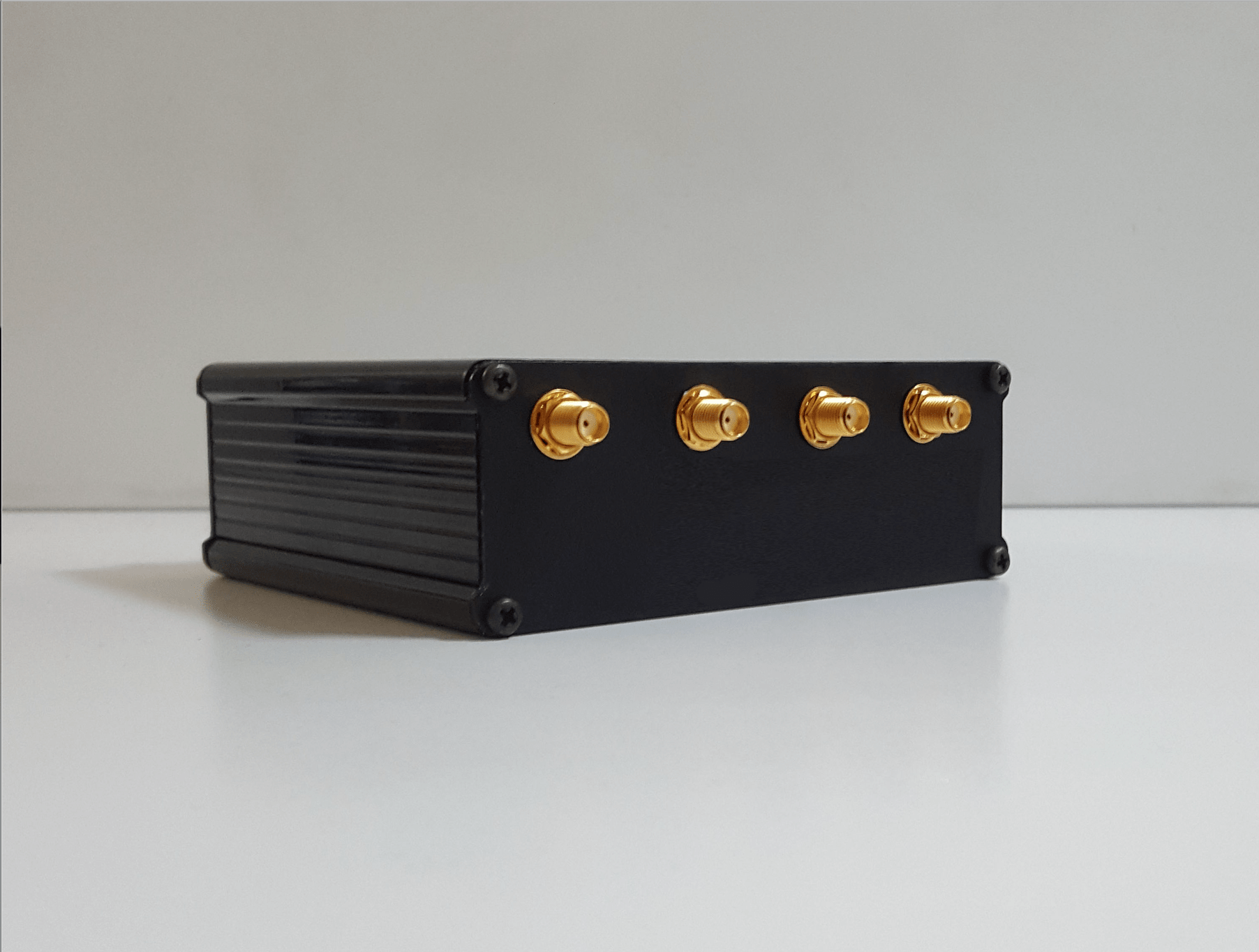

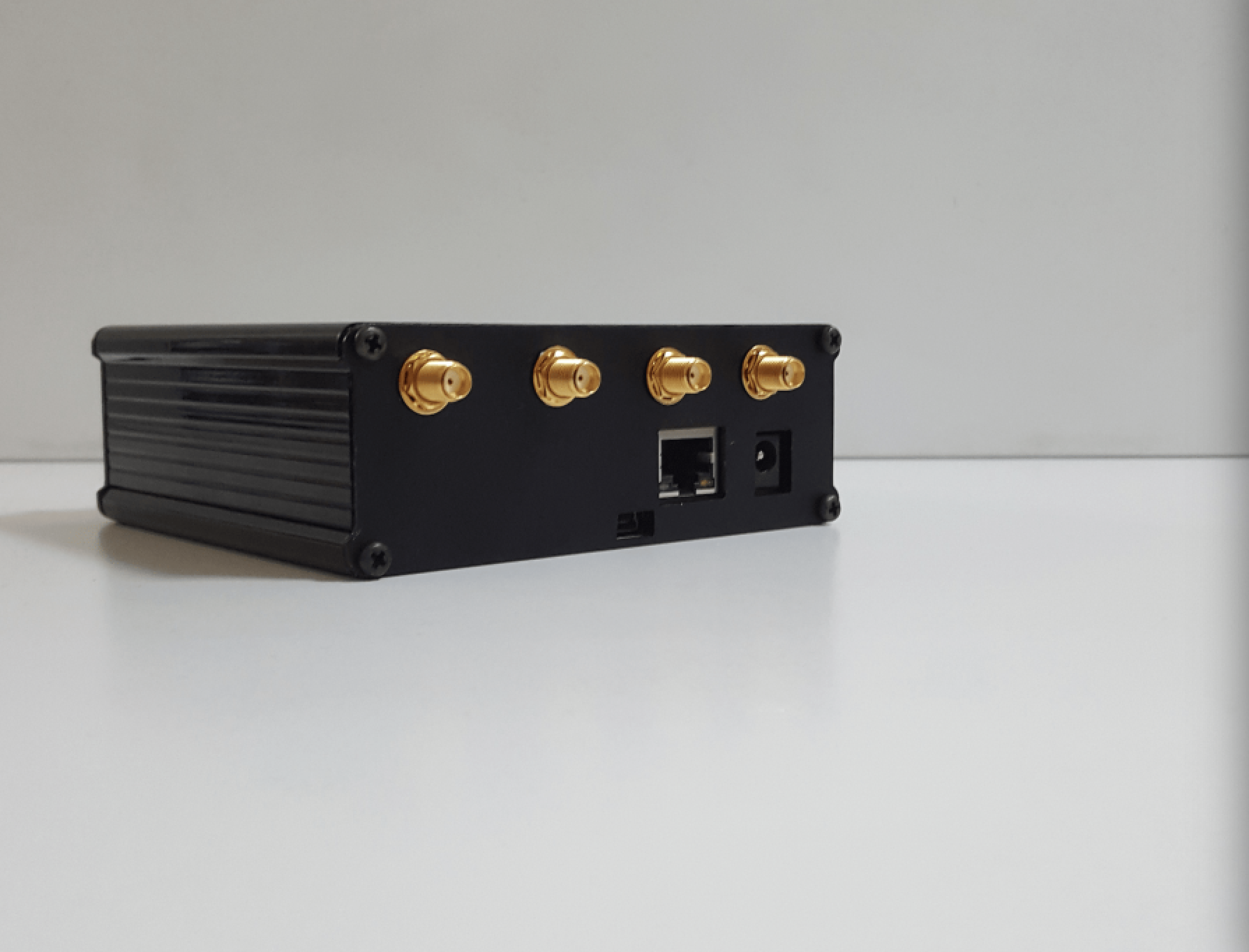

Programmable Phase, Amplitude Changer ist-213

The programmable attenuator can manipulate phase and amplitude of the input signal. The product offers a high-resolution step size (0.25 dB), wide range of attenuation level (0 to 110 dB) as well as wide operating frequency range (1-6 GHz). Additionally, the device can be controlled from a computer via ethernet/USB interface and 4 channels can be set same or different attenuation value at the same time.

Features and Benefits:

  • 4×4 input-output support
  • Frequency range 1 – 6 GHz
  • Maximum input signal strength of 30 dBm
  • Wide attenuation range (0 – 110dB)
  • Attenuation resolution (0.25 dB)
  • Low signal loss (Maximum loss 16.5dB @ 6 GHz)
  • Low leakage
  • USB and IP control (Interface and command)
  • Built-in fixed-phase converter
  • Bi-directional RF signal transmission
  • Lightweight and compact design

Usage Areas:

  • Signal manipulation (Attenuation)
  • Autonomous Test Systems
  • Laboratory Experiments
  • MIMO device tests
  • Channel modeling
  • Production tests
  • WiMAX, 3G, 4G, LTE, DVB attenuation simulator
